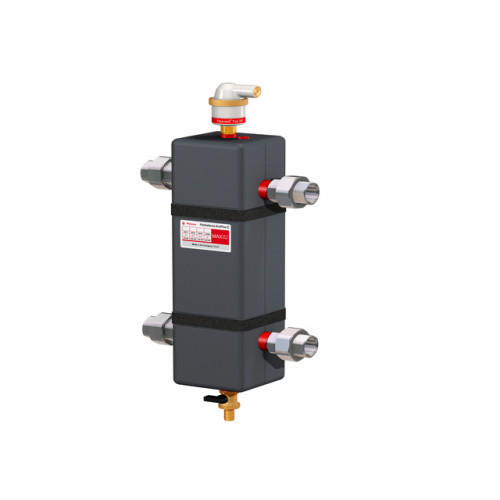

Butelie de egalizare - Flamco FlexBalance Eco Plus

Working pressure: 0.2 - 10 bar.
Minimum/Maximum working temperature: -10 °C / 110 °C.
Equipped with a Flexvent Top ⅜
" white (28510).
Equipped with a brass drain valve ½" and hose connection.
Suitable for addition of glycol-based anti-freeze up to 50%.
Vessel: steel ST 37/2, red coated RAL 3002.
Insulation: material - PUR foam with two quick fasteners. λ
: 0.022 - 0.025W/mK.
A temperature sensor can be inserted in the sensor connection (G ½") with an immersion pipe.
Inner diameter: 12.5 mm.
Coupling (4x) with conical seal, galvanized steel.

Preturi de la

0,00 RON

Pretul include TVA

Cant:

Detalii

Description : Flexbalance hydr. sep. EcoPlus C 1"

Order Code : 28377

GTIN : 08712874283770

Model : FlexBalance EcoPlus C

Connection (4x) : Rp 1"

Capacity [l] : 1.4

Max. power [kW] : 60

Flow rate [l/s] : 0.7

Kv * [m3/h] (ΔP = 1 bar) 26.6

Length immersion pipe [mm] : 80

Weight [kg] : 11

Detalii Tehnice

Cod produs	2837X
