Vas de expansiune cu curgere continua

Mai multe poze

Vas de expansiune cu curgere continua

Fii primul care evalueaza acest produs.

Maximum working pressure: 8/10 bar.
Suitable for systems with a maximum flow temperature of 120 °C.
Maximum temperature diaphragm: 70 °C.
Vessels in accordance with EN13831.
Approvals:DVGW-W270
WRAS
ACS
PZH
KIWA approved execution available on request.
Vet>Approved for potable water applications according to CE 2002/16/EC.
In accordance with Pressure Equipment Directive 2014/68/EU.
Quality Vignette DIN-DVGW: NW-9481 AU2096.
Airfix D 35 - 80: With suspension eye. Connection to the underside of the vessel.
Colour: White RAL9010.

Preturi de la

0,00 RON
Pretul include TVA
OR

Detalii

Description

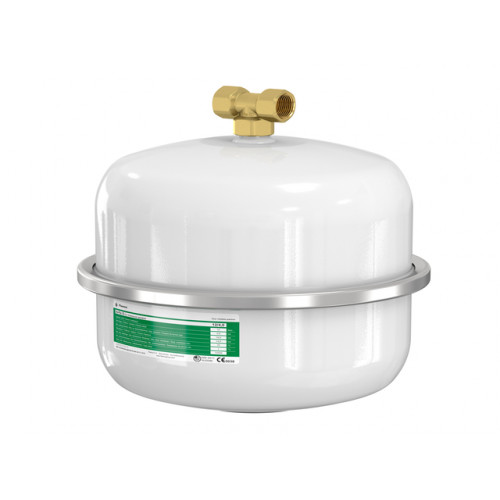

Airfix D DHW exp.ves. 12/4,0[10bar]
Order Code : 14349
GTIN : 08712874143494
Precharge [bar] : 4
Max. working pressure [bar] : 10
Dimensions : Ø [mm] 286
                     H. [mm] 334
Connection : R 3⁄4"
Weight [kg] : 4.3

Detalii Tehnice

Size Options Nu
Color Nu
